15kv 630kva Oil-immersed Distribution Transformer
15kv 630kva Oil-immersed Distribution Transformer Description
15kv 630kva Oil Immersed Distribution Transformer is usually pole mounted or installed in distribution station for daily lighting and factory power whose LV output up to 0.4kV. Hermetically sealed distribution transformer manufactured by us are with corrugated radiators. The corrugated tank as a thermal expansion and contraction components enable the transformer oil completely isolated with the atmosphere. Distribution transformer can be manufactured according to the requirement of client.
|
Model |
S11-630 KVA-6.3/0.4KV |
|
Type |
Oil Immersed Distribution Transformer |
|
Standard |
IEC60076 |
|
Rated Power |
630 KVA |
|
Frequency |
50 HZ |
|
Phase |
Three |
|
Cooling Type |
ONAN |
|
Primary Voltage |
6.3 KV |
|
Secondary Voltage |
0.4 KV |
|
Winding Material |
Copper |
|
Vector Group |
Dyn11 |
|
Impedance |
4.5% |
|
Tap Changer |
NLTC |
|
Tapping Range |
±2*5% |
|
No Load Loss |
0.81KW |
|
On Load Loss |
6.2KW |
|
Accessories |
Standard Configuration |
Pad-mounted transformer
|
Power Rating |
45kVA~6000kVA |
|
Primary Voltage Ratings |
up to 35kV |
|
Secondary Voltage Ratings |
up to 24.94kV |
|
H.V. Tap Range |
±2×2.5% or others |
|
Connection Type |
Delta/Wye |
|
Winding Conductor |
Copper or Aluminum |
|
TYPE |
Loop feed / Radial feed |
|
Configuration |
Live front / dead front |
|
BIL |
30-150kV |
|
Standards |
ANSI, IEEE, DOE, CSA, NEMA, UL |
|
Application |
Residential Areas, Hotels, Single Family Houses, Parks, Distribution Systems |
|
Oil Type |
Mineral Oil or Biodegradable Natural Vegetable Oil, Non PCB Fluid |
|
Finish Color |
Bell Green |
|
Enclosure Rating |
NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank |
Pole Mounted Transformer
|
Key attributes |
|
|
Industry-specific attributes |
|
|
Product |
Single Phase Oil Filled Pole Mounted Transformer |
|
Phase |
Single |
|
Coil Number |
Autotransformer |
|
Other attributes |
|
|
Place of Origin |
Zhejiang, China |
|
Model Number |
Single phase transformer |
|
Rated capacity |
From 10kva to 333kva |
|
High Voltage |
34.5kV and below |
|
Low Voltage |
120/240/277/480V |
|
Frequency |
50/60Hz |
|
Standard |
IEC, ANSI, IEEE, CSA |
|
Vector group |
Ii0, Ii6 |
|
Material |
Aluminum/Copper |
|
Application |
Rural power grid, Remote mountainous areas, scattered villages, Agricultural production, lighting, Power consumption, Railway, Urban power grid |
|
Type |
Oil-immersed Transformer |
|
Feature |
Low Loss |
The following table is the standard parameter of the conventional pole mounted transformer.
|
CAPACITY (kVA) |
η(%) |
ε(%) |
Io(%) |
CORE LOSS (W) |
COPPER LOSS (W) |
DIMENSION(MM) |
OIL (L) |
TOTAL W.T (kg) |
||
|
W |
D |
H |
||||||||
|
10 |
97.2 |
3 |
1.9 |
45 |
180 |
440 |
520 |
940 |
30 |
100 |
|
15 |
97.3 |
3 |
1.8 |
58 |
215 |
450 |
530 |
970 |
30 |
130 |
|
25 |
97.5 |
2.8 |
1.7 |
82 |
295 |
500 |
580 |
980 |
40 |
180 |
|
37.5 |
97.7 |
2.6 |
1.6 |
110 |
400 |
520 |
600 |
1000 |
40 |
220 |
|
50 |
98.1 |
1.9 |
1.5 |
140 |
490 |
540 |
630 |
1060 |
45 |
280 |
|
75 |
98.2 |
1.8 |
1.4 |
200 |
700 |
590 |
670 |
1100 |
55 |
380 |
|
100 |
98.3 |
1.7 |
1.3 |
260 |
900 |
680 |
680 |
1120 |
60 |
450 |
|
167 |
98.4 |
1.6 |
1.2 |
450 |
1500 |
710 |
800 |
1190 |
80 |
580 |
|
250 |
98.5 |
1.5 |
1.1 |
650 |
2250 |
980 |
950 |
1350 |
215 |
980 |
|
333 |
98.6 |
1.4 |
1 |
800 |
3000 |
1040 |
960 |
1400 |
240 |
1100 |
Test Item
√ Winding Resistance Test
√ Insulation Resistance Test
√ Voltage Ratio Error Test
√ Short-circuit Impedance Test
√ No-load Loss (Wattage) Test
√ Load Loss (Wattage) Test
√ Induced Voltage Withstand Test
√ Separate Source Voltage Withstand Test
√ Pressure Integrity Test Test

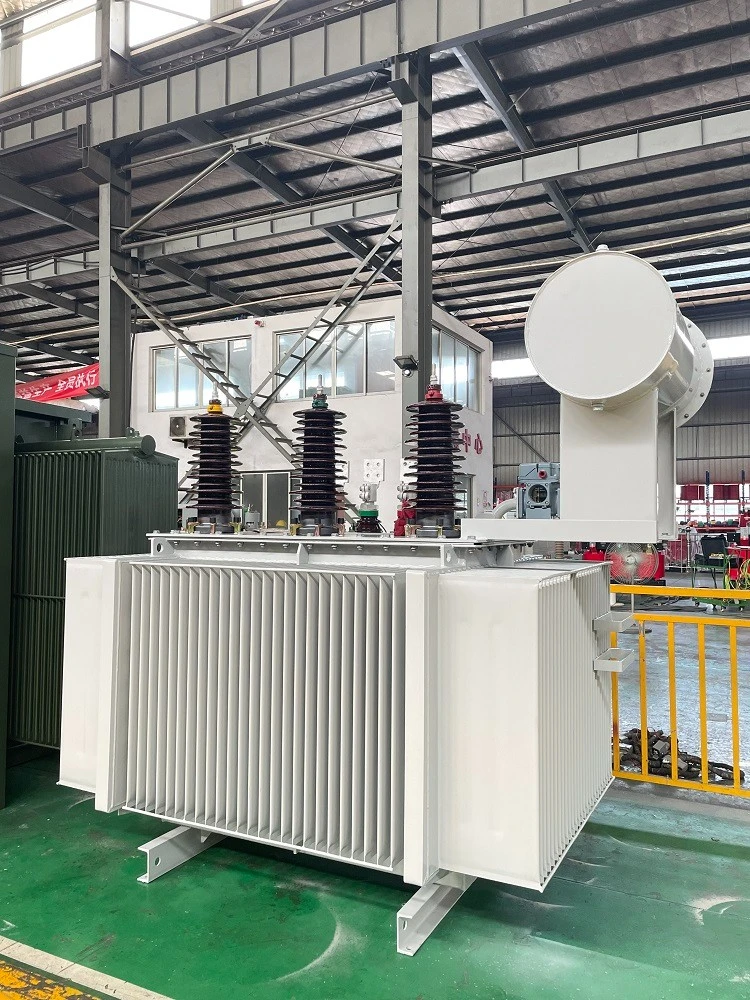

Distribution Transformer Pictures
