Transpower Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of conventional single-phase pad-mounted transformer in China. Welcome to buy high quality customized products at competitive price from our factory. Contact us for quotation.

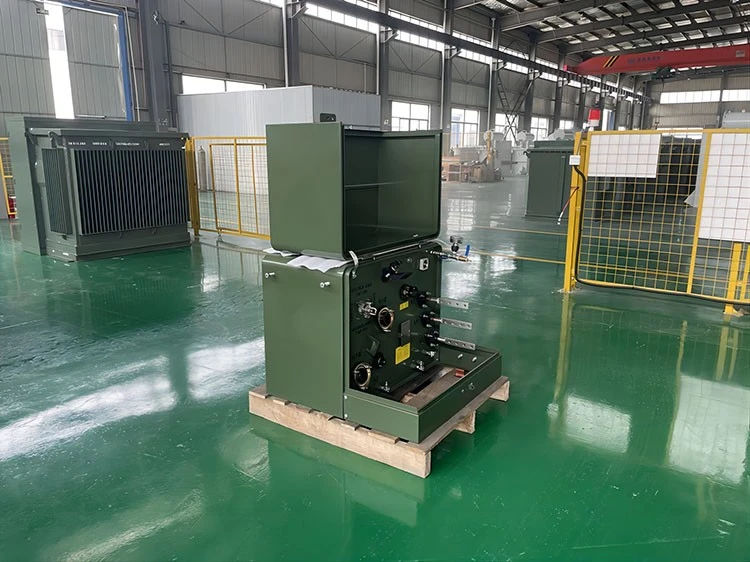

Conventional single-phase pad-mounted transformer

Product Description

Transpower Single pad-mounted transformers are designed to meet or exceed ANSI (American National Standards Institute) and IEEE (Institute of Electrical and Electronics Engineers) standards, ensuring reliability and safety in electrical distribution.

Available Supply

Power Rating	10kVA-500 kVA
Primary Voltage Ratings	6kV, 10kV, 3kV, 2.4kV, 4.16kV, 7.2kV, 12kV, 13.2kV, 13.8kV, 14.4kV, 19.92kV, 24.94kV, 34.5kV
Secondary Voltage Ratings	110V, 220V, 440V, 380v, 480V, 120V, 415V, 400/230V, 240/120V, 208/120V, 480/277V
H.V. Tap Range	±2×2.5% or others
Connection Type	Delta/Wye
TYPE	Pad Mounted, Compartmental-Type
Winding Conductor	Copper or Aluminum
Surge Arrestors	High Voltage Elbow Surge Arrestors, Included as per requirement
BIL	30-150
Standards	IEC60076,ANSI, IEEE, DOE, CSA, NEMA, UL
Efficiency Standards	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Application	Residential Areas, Hotels, Single Family Houses, Parks, Underground Distribution Systems
Oil Type	Mineral Oil or Biodegradable Natural Vegetable Oil, Non PCB Fluid
Finish Color	Munsell™ 7.0 GY 3.29/1.5 Bell Green
Tank/Cabinet/Tank Material	Coated Steel or 304 Stainless Steel
Paint Type	Weatherproof and UV Resistant Epoxy Coating and Undercoating
Enclosure Rating	NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank

Conventional single-phase pad-mounted transformer Parameters

The following table is the standard parameter of the conventional Single Phase oil filled pad-mounted transformer. If you need other capacity and voltage levels, please contact the TRANSpower to obtain accurate technical parameters and offers.

Below Specs Are For Reference ONLY.

10kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High Voltage(v)	Low Voltage(v)	Vector Group	Standard	Short-circuit impedance(%)	Efficiency (%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.70
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Test & QC

After each unit of Conventional single-phase pad-mounted transformer manufactured, routine tests/FAT will be carried out by the requirements of ANSI/IEEE C57.12.90 and C57.12.00. The test report comply with IEEE/CSA standards, and efficiency comply with DOE 2016 Standards.

Routing Test in Our Factory Description
Winding Resistance Test
Insulation Resistance Test
Voltage Ratio Error Test
Short-circuit Impedance Test
No-load Loss (Wattage) Test
Load Loss (Wattage) Test
Induced Voltage Withstand Test
Separate Source Voltage Withstand Test
Pressure Integrity Test Test

Conventional single-phase pad-mounted transformer Outline

product-1149-822

Constructions and Accessories

1.Strips for tamper resistance
2.Lifting provision
3.Door
4.Automatic pressure relief device
5.BAY-O-NET fuse
6.Parking standard
7.Nameplate
8.Low-voltage bushing
9.High-voltage bushing
10.Dual voltage switch
11.Grounding strap
12.Removable sill
13.Floating lock pocket

Product Manufacture in our factory

Enclosure self producing

product-1500-1125

Our Packages and shippings

product-1001-750

Applications

Our Three Phase Pad Mount Transformers can be used in variety of applications, all ranging in complexity.

product-809-321

product-805-289

Frequently Asked Questions (FAQ)

Q: Liquid Level Gauge of the Pad-mounted Transformer

A: The amount of dielectric in the pad-mounted transformer tank can be observed with a level gauge (Fig 6).
It is magnetically coupled to the indicator needle in the gauge.
The magnetic coupling maintains the liquid seal between the inside and the outside.
It can minimize potential leakage.

Q: What Types Of Transformer Liquids Does Transpower Electrical Use?

A: Transpower Electrical offered mineral oil fluid (ONAN) and biodegradable fluid (KNAN). On request we can provide brand name FR3 fluid or other brand name fluids for additional cost and lead time.. All fluids offered by Transpower Electrical are non-PCB containing fluids.
