TRANSPOWER ELECTRICAL's pole-mounted distribution transformers are mounted above ground on poles. These transformers typically service urban and rural residential and commercial loads. Others are light industrial and commercial lighting applications.
The primary function of electrical pole transformers is to step down the high transmission voltages to a lower voltage suitable for local distribution. They achieve this step-down process by combining primary and secondary windings.
Pole Mount Distribution Transformer from TRANSPOWER offers powerful, reliable and efficient power distribution in outdoor and public locations. The low operating costs, low heat emissions and low cost of ownership makes this transformer ideal for a wide range of applications and businesses. This power distribution system is designed for overhead, pole mount installations and use.
Pole mounted distribution transformers are essential for efficiently delivering electricity to end users. Their design and installation are critical to ensuring a reliable and safe power supply. Despite some challenges, their advantages make them a popular choice for many electrical distribution systems.
Pole Mounted Transformer
|
Key attributes |
|
|
Industry-specific attributes |
|
|
Product |
Single Phase Oil Filled Pole Mounted Transformer |
|
Phase |
Single |
|
Coil Number |
Autotransformer |
|
Other attributes |
|
|
Place of Origin |
Zhejiang, China |
|
Model Number |
Single phase transformer |
|
Rated capacity |
From 10kva to 333kva |
|
High Voltage |
34.5kV and below |
|
Low Voltage |
120/240/277/480V |
|
Frequency |
50/60Hz |
|
Standard |
IEC, ANSI, IEEE, CSA |
|
Vector group |
Ii0, Ii6 |
|
Material |
Aluminum/Copper |
|
Application |
Rural power grid, Remote mountainous areas, scattered villages, Agricultural production, lighting, Power consumption, Railway, Urban power grid |
|
Type |
Oil-immersed Transformer |
|
Feature |
Low Loss |
The following table is the standard parameter of the conventional pole mounted transformer. If you need other capacity and voltage levels, please contact the TRANSpower to obtain accurate technical parameters and offers.
Below specs are ONLY For Reference.
|
CAPACITY (kVA) |
η(%) |
ε(%) |
Io(%) |
CORE LOSS (W) |
COPPER LOSS (W) |
DIMENSION(MM) |
OIL (L) |
TOTAL W.T (kg) |
||
|
W |
D |
H |
||||||||
|
10 |
97.2 |
3 |
1.9 |
45 |
180 |
440 |
520 |
940 |
30 |
100 |
|
15 |
97.3 |
3 |
1.8 |
58 |
215 |
450 |
530 |
970 |
30 |
130 |
|
25 |
97.5 |
2.8 |
1.7 |
82 |
295 |
500 |
580 |
980 |
40 |
180 |
|
37.5 |
97.7 |
2.6 |
1.6 |
110 |
400 |
520 |
600 |
1000 |
40 |
220 |
|
50 |
98.1 |
1.9 |
1.5 |
140 |
490 |
540 |
630 |
1060 |
45 |
280 |
|
75 |
98.2 |
1.8 |
1.4 |
200 |
700 |
590 |
670 |
1100 |
55 |
380 |
|
100 |
98.3 |
1.7 |
1.3 |
260 |
900 |
680 |
680 |
1120 |
60 |
450 |
|
167 |
98.4 |
1.6 |
1.2 |
450 |
1500 |
710 |
800 |
1190 |
80 |
580 |
|
250 |
98.5 |
1.5 |
1.1 |
650 |
2250 |
980 |
950 |
1350 |
215 |
980 |
|
333 |
98.6 |
1.4 |
1 |
800 |
3000 |
1040 |
960 |
1400 |
240 |
1100 |
Test Item
√ Winding Resistance Test
√ Insulation Resistance Test
√ Voltage Ratio Error Test
√ Short-circuit Impedance Test
√ No-load Loss (Wattage) Test
√ Load Loss (Wattage) Test
√ Induced Voltage Withstand Test
√ Separate Source Voltage Withstand Test
√ Pressure Integrity Test Test
25kVA Single Phase Oil Filled Pole Mounted transformer dimensions and weight details
75kVA Single Phase Oil Filled Pole Mounted transformer dimensions and weight details
167kVA Single Phase Oil Filled Pole Mounted transformer dimensions and weight details
Single Phase Oil Filled Pole Mounted transformer Diagram

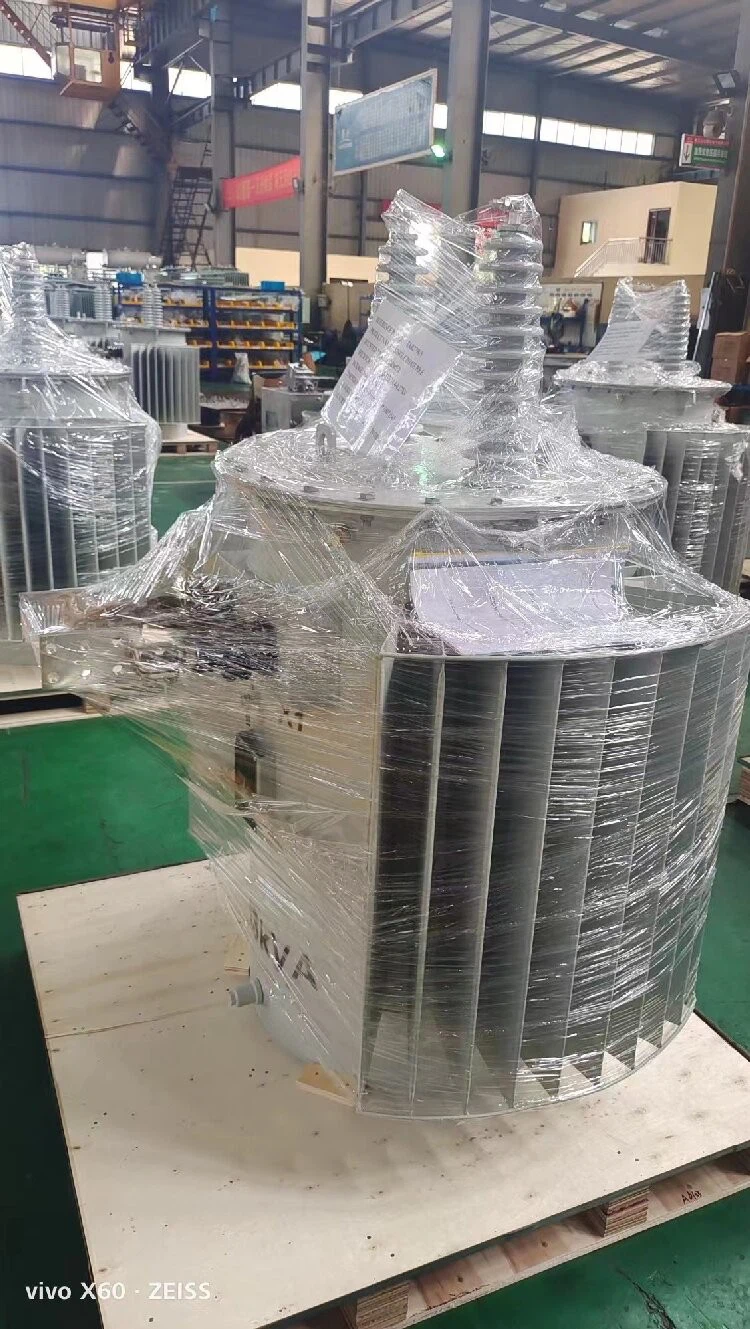

Pole Mounted Transformer Pictures
Pole Mounted Transformer Packaging
Frequently Asked Questions (FAQ)
