Transpower Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of 3 phase padmount transformer in China. Welcome to buy high quality customized products at competitive price from our factory. Contact us for quotation.

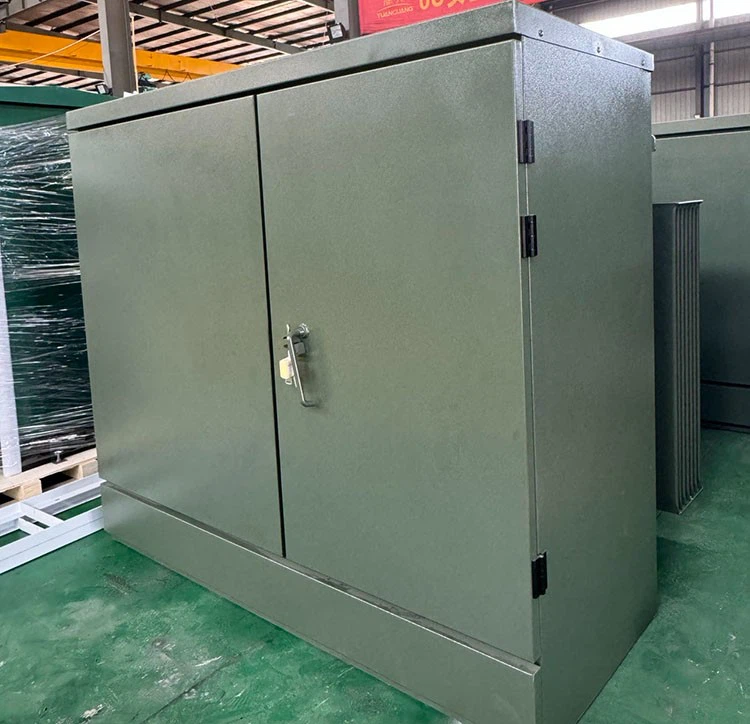

3 Phase Padmount Transformer
Production Description
Pad-mounted transformers are made in power ratings from around 45kVA to around 6000 kVA and often include built-in fuses and switches. Primary power cables may be connected with elbow connectors, which can be operated when energized using a hot stick and allows for flexibility in repair and maintenance.
The rated power of TRANSpower's 3 Phase Padmount Transformer is 45-6000kva, the voltage up to 35kv, and it is grounded. Transpower pad-mounted transformer design and production can meet various international standards, such as ANSI, IEEE standards, etc. TRANSpower's three phase pad mounted transformer with UL, CSA, IEEE certificates.
Available Supply
|
Power Rating |
45kVA~6000kVA |
|
Primary Voltage Ratings |
up to 35kV |
|
Secondary Voltage Ratings |
up to 24.94kV |
|
H.V. Tap Range |
±2×2.5% or others |
|
Connection Type |
Delta/Wye |
|
Winding Conductor |
Copper or Aluminum |
|
TYPE |
Loop feed / Radial feed |
|
Configuration |
Live front / dead front |
|
BIL |
30-150kV |
|
Standards |
ANSI, IEEE, DOE, CSA, NEMA, UL |
|
Application |
Residential Areas, Hotels, Single Family Houses, Parks, Distribution Systems |
|
Oil Type |
Mineral Oil or Biodegradable Natural Vegetable Oil, Non PCB Fluid |
|
Finish Color |
Bell Green or as customized |
|
Enclosure Rating |
NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank |
Compartment Details
High Voltage Compartment: Includes six separable insulated high-voltage bushings, one 4-position load break switch, three Bay-O-net fuses, one 5-position tap changer, and a drip tray.
Low Voltage Compartment: Features a nameplate, four LV spade bushings with 10 holes, a vacuum pressure gauge, fill plug, pressure relief valve, upper fill valve, terminal support, oil temperature indicator with contacts, oil level gauge, and drain valve with sampler.
3 Phase Padmount Transformer Parameters
The following table is the standard parameter of 3 Phase Padmount Transformer. If you need other capacity and voltage levels, please contact the TRANSpower to obtain accurate technical parameters and offers.
We provide customized 3 Phase Padmount Transformer according to customers.
Below Specs Are For Reference ONLY .
|
Three Phase Pad Mount Transformers Sizes |
||||||
|
kVA |
Type |
HV |
LV |
W(mm) |
D(mm) |
H(mm) |
|
75 |
radial |
25000Delta |
480GrdY/277 |
1280 |
1085 |
1085 |
|
150 |
loop |
14400v |
600GrdY/347 |
1480 |
1250 |
1750 |
|
225 |
radial |
4160Delta |
347GrdY/600V |
1480 |
1295 |
1750 |
|
300 |
loop |
345000 |
208GrdY/120 |
1500 |
1730 |
1850 |
|
500 |
loop |
1247Grdy/7200V |
600Y/347 |
1447 |
1800 |
1750 |
|
750 |
radial |
24940GrdY/14400 |
800GrdY/462 |
1485 |
1730 |
1750 |
|
1,000 |
radial |
249400DELTA |
480V |
1730 |
1350 |
1850 |
|
1,250 |
loop |
25000V |
416V |
1730 |
1320 |
1920 |
|
1,500 |
loop |
4160GRDY/2400 |
600GrdY/347 |
1730 |
1910 |
1965 |
|
1,500 |
loop |
34500DELTA |
480GrdY/277 |
2220 |
2069 |
2065 |
|
1,750 |
loop |
13800Delta |
480GrdY/277 |
1730 |
2304 |
1900 |
|
2,000 |
radial |
4160DELTA |
415GrdY/240 |
1730 |
1950 |
1810 |
|
2,500 |
loop |
25000DELTA |
600GrdY/347 |
1730 |
2560 |
1960 |
|
2,550 |
loop |
12470DELTA |
415GrdY/240 |
1730 |
2000 |
2200 |
|
2600 |
Loop |
34500DELTA |
416GrdY/240 |
1730 |
1695 |
2290 |
|
3000 |
Loop |
27,600DELTA |
13,800DELTA |
1830 |
2360 |
2000 |
|
4000 |
loop |
27600Delta |
600GrdY/347 |
1900 |
2500 |
2010 |
|
5000 |
radial |
13,800DELTA |
4,160GrdY/2,400 |
1900 |
2735 |
2500 |
|
7000 |
loop |
27,600DELTA |
13,800DELTA |
2200 |
3030 |
2080 |
|
7500 |
loop |
249400DELTA |
4.16kv Wye |
2300 |
3200 |
2100 |
|
10000 |
loop |
24900GrdY/14400 |
600V |
2800 |
3500 |
2560 |
Main Materials
Test & QC
After each unit of 3 Phase Padmount Transformer manufactured, routine tests/FAT will be carried out by the requirements of ANSI/IEEE C57.12.90 and C57.12.00. The test report comply with IEEE/CSA standards, and efficiency comply with DOE 2016 Standards.
Routing Test in Our Factory
Winding Resistance Test
Insulation Resistance Test
Voltage Ratio Error Test
Short-circuit Impedance Test
No-load Loss (Wattage) Test
Load Loss (Wattage) Test
Induced Voltage Withstand Test
Separate Source Voltage Withstand Test
Pressure Integrity Test Test
We offer both online and offline test supervision options for our customers. You can also choose a third party, such as SGS, CSA, or UL to visit Transpower's factory, during the witness test, the test being executed and receive a report that fully comply with standard requirements. Alternatively, you can request online video monitoring to observe the testing process in real-time. Ensuring transparency and confidence in the testing procedures.
Our production and testing equipment have professional calibration every year.
3 Phase Padmount Transformer Outline
Painting
Our Packages and Shippings
Assembly and Packaging Area
After Assembled then Shipping by container
Applications
Our Three Phase Pad Mount Transformers can be used in variety of applications, all ranging in complexity.
